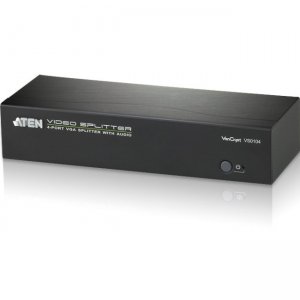

Aten VS0104 4-Port VGA Splitter with Audio
Manufacturer: Aten
UPC: 672792003899
SKU: VS0104
Condition: New
Aten VS0104 4-Port VGA Splitter with Audio
Product TypeSignal Splitter
Brand NameAten
ManufacturerAten Technologies
Product ModelVS0104
Product Name4-Port VGA Splitter with Audio
Manufacturer Part NumberVS0104
Manufacturer Website Addresshttp://www.aten-usa.com
Packaged Quantity1
Maximum Frequency450 MHz
Green CompliantYes
Green Compliance Certificate/AuthorityRoHSWEEE
Package Contents
  • 4-Port VGA Splitter with Audio
  • 1 x Power Adapter
  • 1 x User Instructions
Audio Line InYes
Audio Line OutYes
Serial PortYes
Number of VGA Outputs4
VGA InYes
VGA OutYes
Number of Audio Line In1
Number of Audio Line Out4
Number of VGA Inputs1
Height1.7"
Width3"
Length7.9"
Weight (Approximate)1.50 lb
Input Voltage5.3 V DC
The ATEN VS0104 4-Port VGA Splitter with Audio is VGA splitter that allow a single VGA video & audio signal to be distributed to four output displays with independent stereo control. The splitter support up to 450MHz video bandwidth, which provides optimum video quality, supported by resolutions up to 1920x1440. Furthermore, for complete systems integration, serial control is standard through the VS0104 built-in RS-232 ports, which allow the splitter to be controlled through a high-end controller or PC. The VS0104 is perfect for conference rooms,training facility & multi-display broadcasting, with cascadable support up to three levels allowing a single video signal to be sent across up to 64 video displays while sustaining the highest quality possible.
