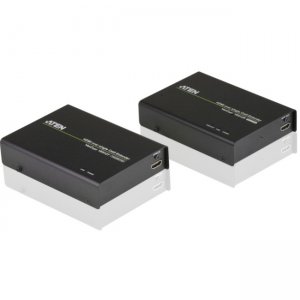

Aten VE812 HDMI over Single Cat 5 Extender
Manufacturer: Aten
UPC: 672792004438
SKU: VE812
Condition: New
Aten VE812 HDMI over Single Cat 5 Extender
Product TypeVideo Console/Extender
Brand NameAten
ManufacturerAten Technologies
Product ModelVE812
Product NameHDMI over Single Cat 5 Extender
Manufacturer Part NumberVE812
Manufacturer Website Addresshttp://www.aten-usa.com
Green CompliantYes
Green Compliance Certificate/AuthorityRoHSWEEE
Package Contents
  • 1 x VE812T HDMI Over Single Cat 5 Transmitter
  • 1 x VE812R HDMI Over Single Cat 5 Receiver
  • 2 x Power Adapters
  • 1 x User Instructions
Maximum Video Resolution4096 x 2160
Twisted Pair Cable StandardCategory 5e
Media Type SupportedTwisted Pair
Maximum Operating Distance328.08 ft
Number of Output Devices Supported1
Number of Input Devices Supported1
Connectivity TechnologyWired
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Number of HDMI Inputs1
Number of HDMI Outputs1
HDMI InYes
HDMI OutYes
Height3"
Width10.3"
Depth14.2"
Weight (Approximate)14.11 oz
The VE812 HDMI over Single Cat 5 Extender enables an HDMI display to be located up to 100 meters away from the source device. It can conveniently be extended using only one Cat 5e cable, which is cost-effective.The VE812 not only supports HDMI (3D, Deep Color ) but also Ultra HD (4k x 2k) and is HDCP compatible. Furthermore remote EDID pass-through ensures optimum video quality for your HDMI display. The VE812 is perfect for the meeting room, home theater or any installation that needs long distance transmission and superior video quality.
