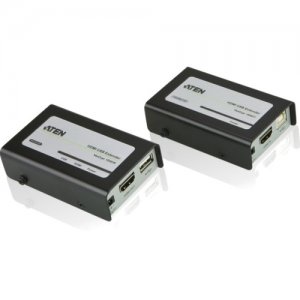

Aten VE803 HDMI USB Extender
Manufacturer: Aten
UPC: 672792004285
SKU: VE803
Condition: New
Aten VE803 HDMI USB Extender
Price $123.20
Product TypeVideo Console/Extender
Brand NameAten
ManufacturerAten Technologies
Product NameHDMI USB Extender
Manufacturer Part NumberVE803
Manufacturer Website Addresshttp://www.aten-usa.com
Graphics ModesWUXGA
Maximum Video Resolution1920 x 1200
Green CompliantYes
Green Compliance Certificate/AuthorityRoHSWEEE
Package Contents
  • 1 x VE803T HDMI USB Extender
  • 1 x VE803R HDMI USB Extender
  • 1 x Power Adapter
  • 1 x USB Cable (1.8 m)
  • 1 x Mounting Kit
  • 1 x User Instructions
Twisted Pair Cable StandardCategory 5e
Media Type SupportedTwisted Pair
Maximum Operating Distance131.23 ft
Number of Output Devices Supported1
Number of Input Devices Supported1
Connectivity TechnologyWired
USBYes
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Number of USB Ports2
Number of HDMI Inputs1
Number of HDMI Outputs1
HDMI InYes
HDMI OutYes
Height0.9"
Width1.2"
Weight (Approximate)5.64 oz
The VE803 HDMI USB Extender extends an HDMI signal up to 60 meters from the HDMI source using two Cat 5e cables. It is capable of sending 1080i signals up to 60 meters and 1080p signals up to 40 meters. The VE803 is equipped with USB connectors which allow you to extend any USB device between the units. The USB feature also provides support for touch panel control, allowing you to control the local HDMI source device from the remote display, or control the remote display through the local unit.The VE803 is ideal for transportation centers, medical facilities, shopping malls or anywhere touch panel control or a kiosk is required. For flexibility and convenience, the VE803 local unit can be powered via the USB cable when connected to an appropriate source device. The VE803 is HDCP compliant, providing an easy and ideal HDMI extender solution for any application.
