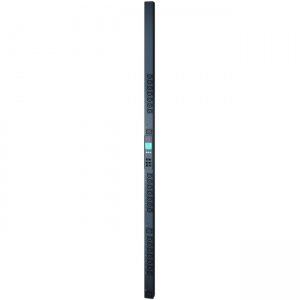

APC AP8659NA3 Metered-by-Outlet Rack PDU
Manufacturer: APC
UPC: 0731304299523
SKU: AP8659NA3
Condition: New
APC AP8659NA3 Metered-by-Outlet Rack PDU
Product TypePDU
Brand NameAPC
ManufacturerAmerican Power Conversion Corp
Product NameMetered-by-Outlet Rack PDU
Manufacturer Part NumberAP8659NA3
Manufacturer Website Addresshttp://www.apc.com
Green CompliantYes
Green Compliance Certificate/AuthorityREACHRoHS
Package Contents
  • Metered-by-Outlet Rack PDU
  • CAN Port Terminator
  • Installation Guide
  • Locking Input Power Cord
  • Rack Mounting Brackets
  • Safety Guide
  • Serial Configuration Cable
Form FactorRack-mountable
Weight (Approximate)14.90 lb
Input ReceptaclesNEMA L6-20P
Output Receptacles3 x IEC 60320 C1921 x IEC 60320 C13


  • Web
  • SNMP
  • Telnet
Input Voltage200 V AC208 V AC230 V AC
Output Voltage208 V AC
Limited Warranty2 Year
APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
