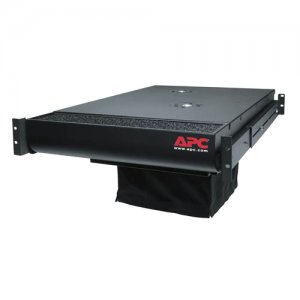

APC ACF001 Airflow Cooling System
Manufacturer: APC
UPC: 731304120728
Condition: New
APC ACF001 Airflow Cooling System
Product TypeAirflow Cooling System
Brand NameAPC
ManufacturerAmerican Power Conversion Corp
Product ModelACF001
Product NameACF001 Airflow Cooling System
Manufacturer Part NumberACF001
Manufacturer Website Addresshttp://www.apc.com
Compatible Rack Height2U
Weight (Approximate)41.09 lb
Maximum Air Flow503 CFM
Cooling Power Consumption3.50 kW
Input Current2 A
Power Consumption240 W
Input Voltage120 V AC
Package Contents
  • ACF001 Airflow Cooling System
  • Rack Mounting brackets
  • User Manual
Limited Warranty2 Year
The Rack Air Distribution Unit is a 2U fan unit that connects into the raised floor and pulls supply air directly into the enclosure. This prevents the conditioned air from mixing with warmer room air before reaching the equipment. This minimizes temperature differences between the top and bottom of the enclosure, while also preventing hot exhaust air recirculation to the inlet of the enclosure. The product is recommended for rack enclosures with loads greater than 1.5kW and can provide airflow for loads up to 3.5kW. It is also ideal for enclosures in raised floor environments where underfloor air distribution is inadequate.
